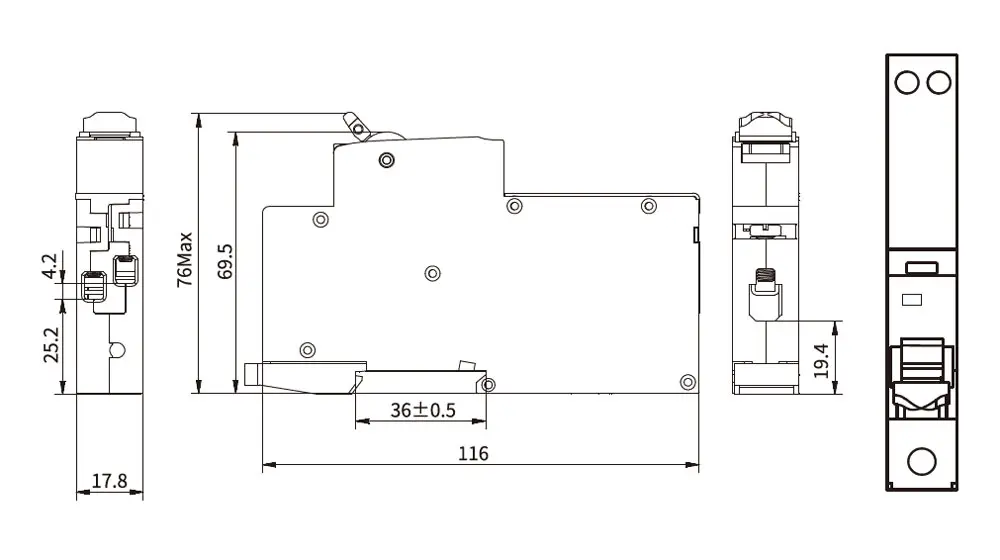

| Mode |
Electronic |
| Type |
A |
| Rated current In |
6,10,16,20,25,32,40A |
| Poles |
1P+N |
| Rated voltage Ue |
230/240V~ |
| Insulation voltage Ui |
500V |
| Rated frequency |
50/60Hz |
| Rated residual operating current(I△n) |
10,30,100,300mA |
| Break time under I△n |
≤0.1s |
| Rated breaking capacity |
6,000A |
| Energy limiting class |
3 |
| Rated impulse withstand voltage (1.2/50) Uimp |
4,000V |
| Dielectric test voltage at ind.Freq. for 1min |
2kV |
| Thermal release characteristic |
(1.13-1.45) x In |
| Magnetic release characteristic |
B:(3-5) x In, C:(5-10) x In |
| Thermo-magnetic release characteristic |
B,C |
| Electrical life |
4,000 Cycles |
| Mechanical life |
10,000 Cycles |
| Contact position indicator |
Yes |
| Protection degree |
IP20 |
| Ambient temperature |
-25℃ to +40℃, Max.95% humidity |
| Terminal connection type |
Cable/Pin-type busbar |
| Max. terminal size for cable |
L(in):25mm2 , N/L(out) :16mm2 |
| Max. tightening torque |
L(in):2.5N.m , N/L(out):2N.m |
| Installation |
Mounting on 35mm DIN rail |
| Connection |
From bottom |
