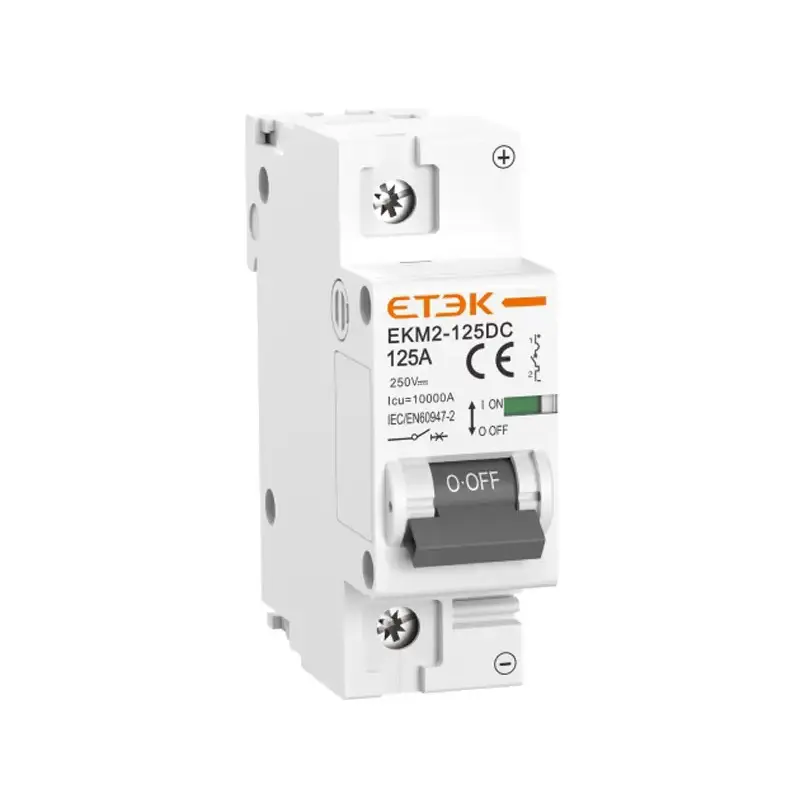

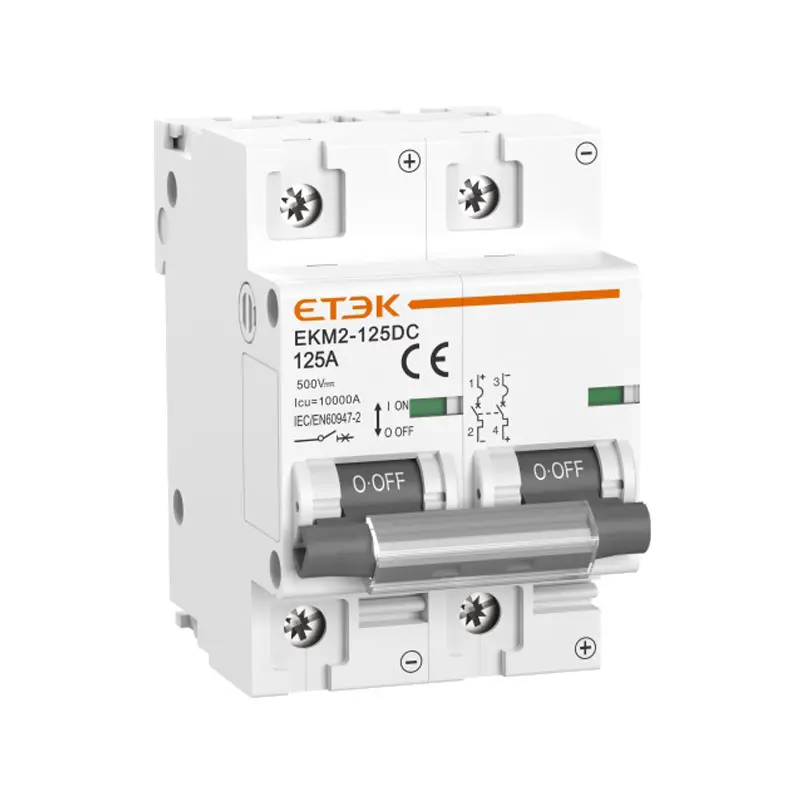

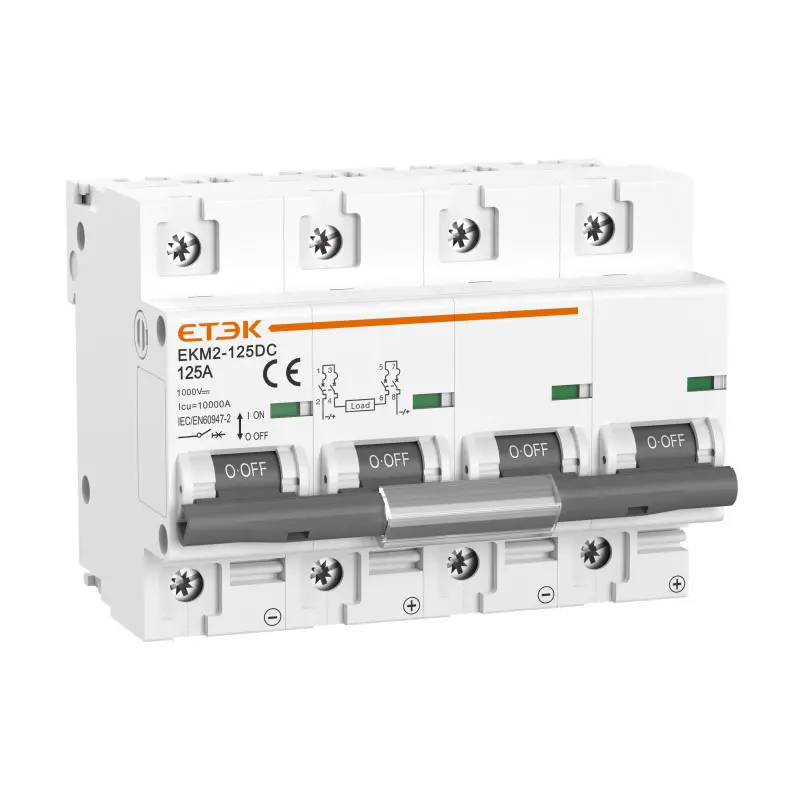

| Standard |
IEC/EN 60947-2 |
| Protection |
Overcurrent and short circuit |
| Type of trip |
Thermo-magnetic |
| No. of poles |
1P, 2P, 4P |
| Rated voltage (Ue) |
250VDC(1P), 500VDC(2P), 1000VDC(4P) |
| Rated insulation voltage (Ui) |
500V(1P, 2P), 1000V(4P) |
| Rated currents (In) |
16, 20, 25, 32, 40, 50, 63, 80, 100, 125A |
| Rated short-circuit breaking capacity (Ics=Icn) |
6kA/10kA, Cat. A |
| Rated impulse withstand voltage (Uimp) (1.2/50μs) |
4kV |
| Dielectric test voltage |
3kV (50/60Hz, 1 min.) |
| Thermal tripping characteristics |
(1.05-1.30) x In |
| Instantaneous tripping characteristics (fixed) |
Ii=10In |
| Electrical life |
4,000 Cycles |
| Mechanical life |
10,000 Cycles |
| Contact position indicator |
green OFF / red ON |
| Protection degree |
IP20 |
| Ambient temperature |
-5℃ to +40℃, Max.95% humidity |
| Terminal connection type |
Cable/Pin-type busbar |
| Max. terminal size for cable |
50mm2 |
| Max. tightening torque |
3.5N.m |

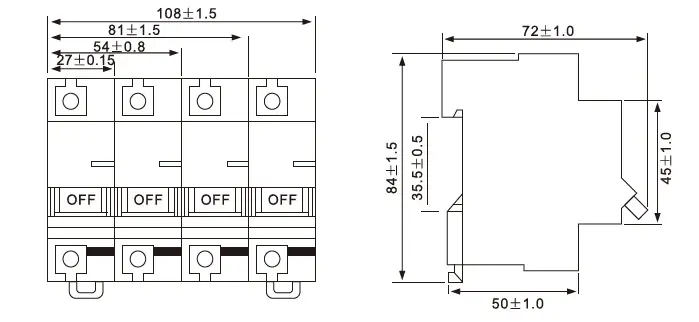

| Installation |
Mounting on 35mm DIN rail |
| Incoming method |
According to the wiring diagram |
