32A Type 2 EV Charging Cable | 7.3kW Single Phase | 5M TPU

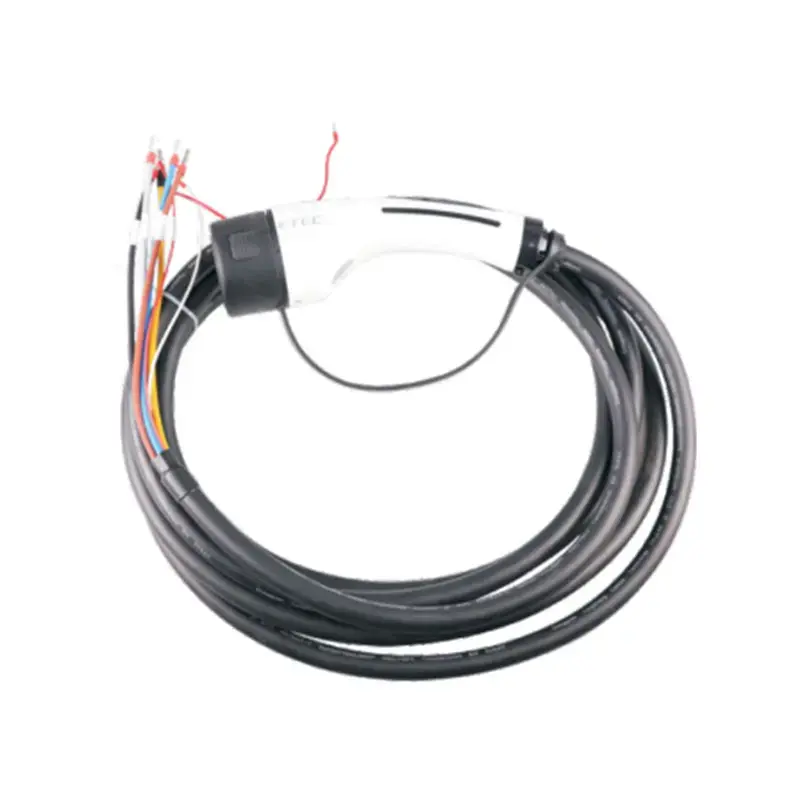

EKEP1-T2-32 single phase 32A type 2 EV charging gun connector with 5 meter TPU cable
Product Profile
Product Profile

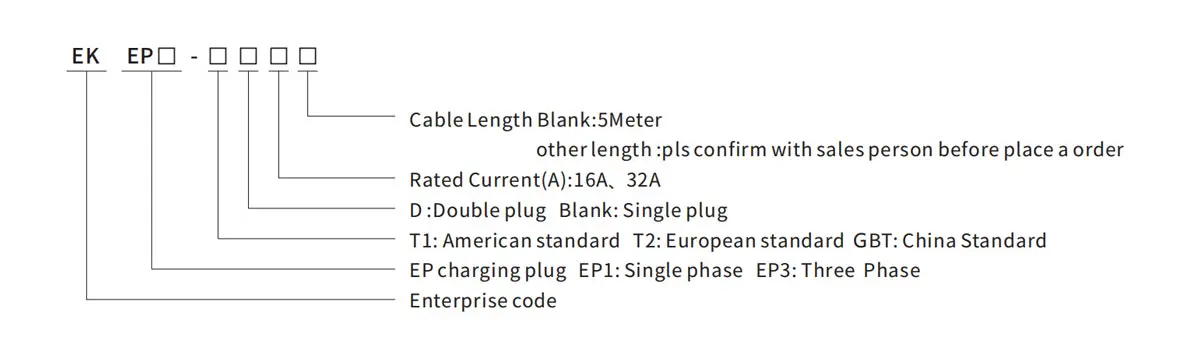

Naming Rule
Human appearance design, beautiful and fashionable, in line with the modern aesthetics and ergonomic design concept, easy to use.
The product conform to IEC62196-1, IEC62196-2 European standard and SAEJ1772-2010 American standard.
Protection degree: IP65
Model Preparation Meaning
Model Preparation Meaning
| Model | Specification | Cable |
| EKEP1-T2 | Single phase：16A | 3*2.5mm²+0.5mm² |
| Single phase：32A | 3*6mm²+0.5mm² | |
| EKEP3-T2 | Three phase：16A | 5*2.5mm²+0.5mm² |
| Three phase：32A | 5*6mm²+0.5mm² |
Technical Data
Technical Data
Electrical Performance
| Operation Voltage | 230V±10% 50Hz/400V±10%50Hz |
| Operation Current | 16A、32A |
| Continuously Using Time | Continuously working 24h |
| Conductive Terminal Temperature Rise | ≤ 50K |
| Insulation Resistance | ≥500MΩ、DC500V |
| Withstand Voltage | 2500V/min |
| Contact Resistance | ≤0.3Ω |
Mechanical Features
| Mechainical Life | 5,0000 times or more |
| Insertion / Pulling Force During Connection | 45N~80N |
| Withstanding Impact | Tolerable to 2 ton car rolling or 1m height drop without damage |
Major Material
| Conductor Material | Copper alloy + silver plating |
| Enclosure Material | Thermoplastic flame retardant plastic, flame retardant grade UL94V-0 |
Ambient Condition
| Ambient Temperature | -40℃-+50℃ |
| Humidity | <85% |

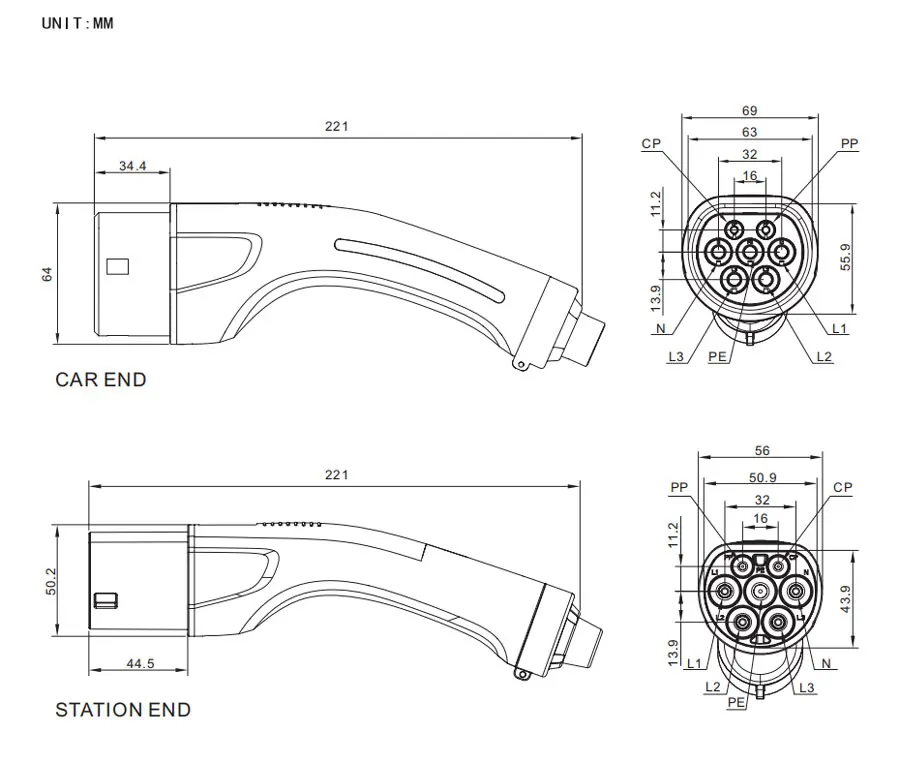

Dimensions
Dimensions
