| Rated current In |
|
32A,63A,125A |
| Model No. |
General type |
EKF1-32,EKF1-63,EKF1-125 |
| With Indicator type |

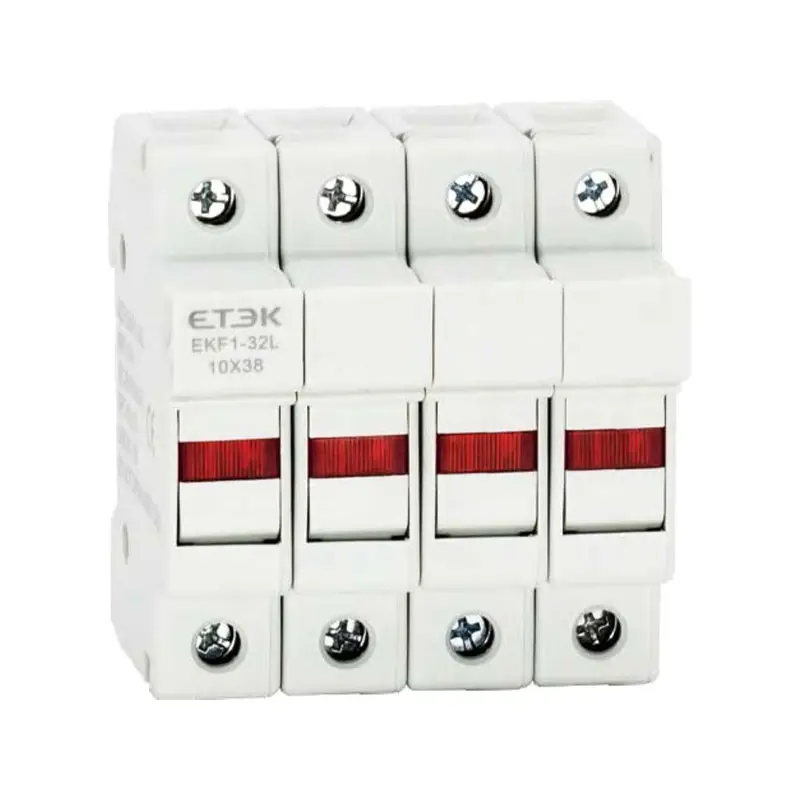

EKF1-32L,EKF1-63L,EKF1-125L |
| Poles |
1P,2P,3P,4P,1P+N,3P+N |
| Utilization category |
AC-22A |
| Rated voltage Ue |
240/415V~ |
| Insulation voltage Ui |
500V |
| Rated frequency |
50/60Hz |
| Rated impulse withstand voltage (1.2/50) Uimp |
4,000V |
| Electrical life |
1,500Cycles |
| Mechanical life |
8,500Cycles |
| Operating frequency |
120/h |
| Protection degree |
IP20 |
| Tightening torque |
EKF1-32 |
1.5Nm 14In-lbs |
| EKF1-63 |
2.5Nm 22In-lbs |
| EKF1-125 |
3.5Nm 30In-lbs |
| Terminal size for cable |
EKF1-32 |
16mm2 18-5AWG |
| EKF1-63 |
25mm2 18-3AWG |
| EKF1-125 |
50mm2 18-2AWG |
| Ambient temperature(with daily average≤35℃) |
-5℃~+40℃ |
| Storage temperature |
-25℃~+70℃ |
| Mounting |
On DIN rail EN60715(35mm) by means of fast clip device |
