| Rated value |
AC415/400V 50/60Hz 3A |
| AC240/400V 50/60Hz 3A |
| DC130V 1A |
| DC48V 2A |
| DC24V 6A |
| Configurations |

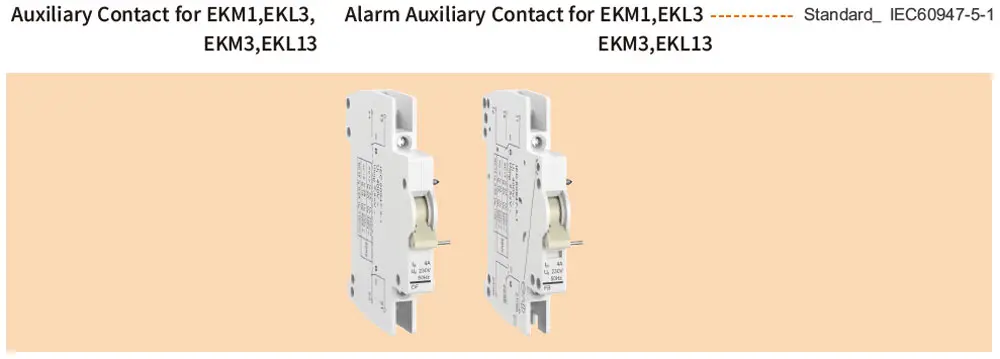

EKM1-OF 1N/O+1N/C |
| EKM1-FB 2N/O+2N/C |
| Rated impulse withstand voltage (1.2/50)Uimp |
4,000V |
| Rated short circuit making capacity |
20le, t=0.1s |
| Dielectric test voltage at ind. Freq. for 1min |
2kV |
| Insulation voltage Ui |
500V |
| Pollution degree |
2 |
| Electrical life |
6,000 Cycles |
| Mechanical life |
10,000 Cycles |
| Protection degree |
IP20 |
| Ambient temperature (with daily average≤35℃) |
-5℃~+40℃ |
| Storage temperature |
-25℃~+70℃ |
| Terminal connection type |
Cable |
| Terminal size top/bottom for cable |
2.5mm² 18-13AWG |
| Tightening torque |
0.8 N.m 7In-Ibs |
