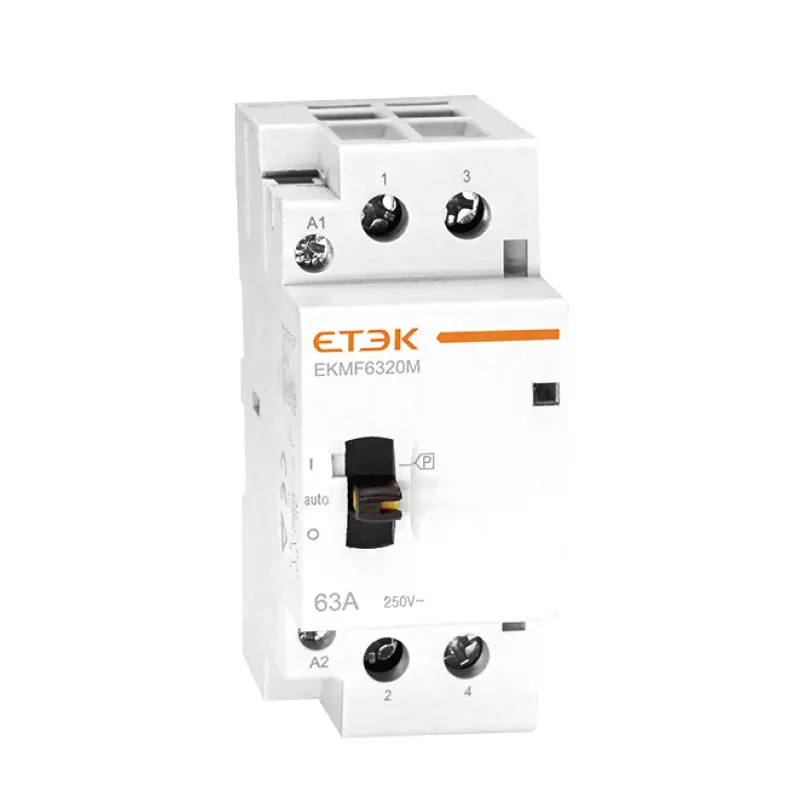

EKMF 40A Modular Contactor | 2P IEC Standard
EKMF modular contactor both complying with IEC61095 and IEC60947-4-1 standard,Ambient temperature is -25℃-+55℃
Product Profile
Product Profile
EKMF normoally using for 1phase for a good temperature rasing proformance and electrical life, both 3.7kW and 7kW we all using 2NO Pole 40A contatcor, 11kW and 22kW using 4NO Pole Contatcor

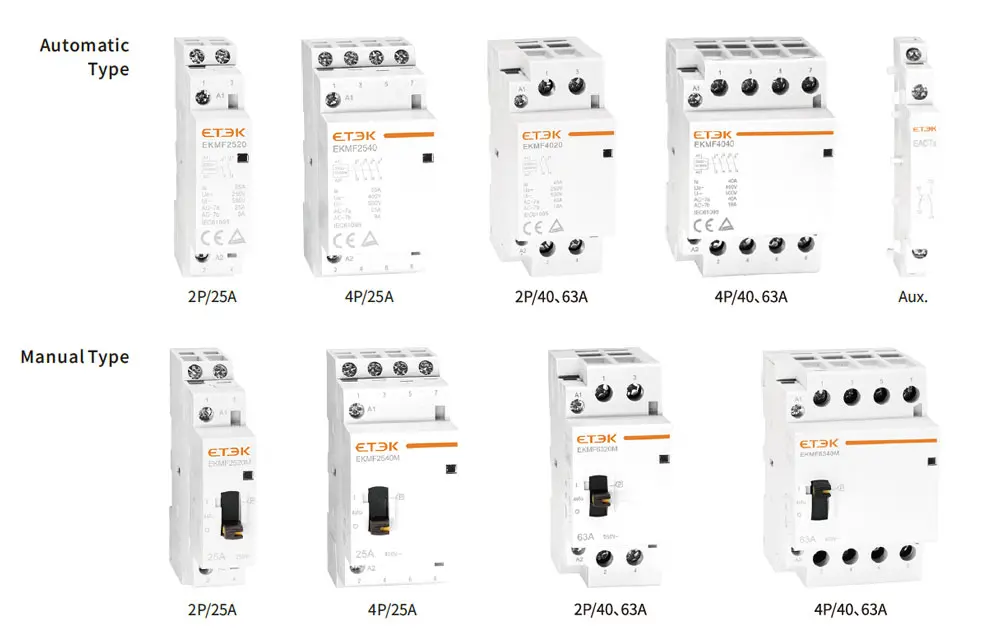

Model Preparation Meaning
Model Preparation Meaning

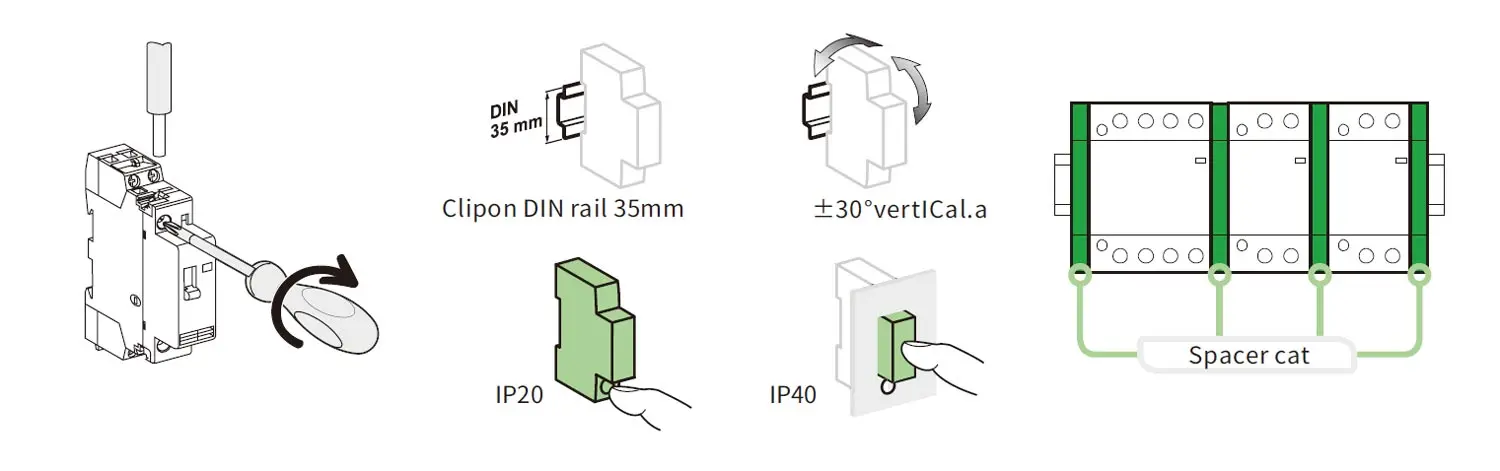

Connection
| Type | Rating(In) | Spacer cat | Circuit | Tightening Torque |
Copper Cables | ||
| Rigid | Flexible or Ferrule | ||||||
 |
 |
||||||
| EKMF | PZ1:4MM | 16-100A | 9mm | Control | 0.8N.m | 1.5~2.5mm² 2×1.5mm² |
1.5~2.5mm² 2×2.5mm² |
| 16~25A | Power | 1.5~6mm² | 1~4mm² | ||||
| PZ2:6MM | 40A-63A | 14mm | 3.5N.m | 6~25mm² | 6~16mm² | ||
| 100A | 6×3.5mm² | 6×35mm² | |||||
EKMF Contactors-50Hz
| Rating(In) | Control Voltage (VAC) (50/60Hz) |
Consumption | Max.Power | |||
| AC-7a | AC-7b | Holding | Inrush | |||
| 2P | 40A | 18A | 220...240 | 4.6VA | 34VA | 1.6W |
EKMF Manual Control Contactor-50Hz
| Rating(In) | Control Voltage (VAC) (50/60Hz) |
Consumption | Max.Power | |||
| AC-7a | AC-7b | Holding | Inrush | |||
| 2P | 40A | 18A | 220...240 | 4.6VA | 34VA | 1.6W |

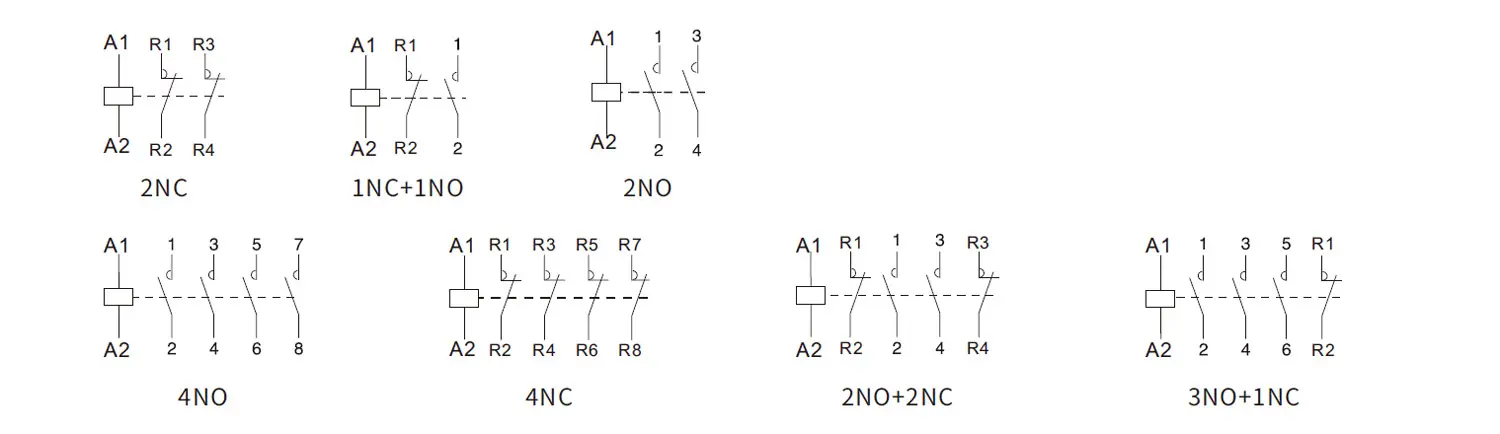

Circuit Diagram
Technical Data
Technical Data
Electrical Features
| Voltagerating(Ue) | 1P,2P | 250V AC |
| Frequency | 50/60Hz | |
| Endurance (O-C) | 1,000,000 | |
| Electrical Life | 100,000 | |
| Maximum Number of Switching Operation a Day | 100 | |
| Additional Characteristics | ||
| Insulation Voltage (Ui) | 500V AC | |
| Pollution Degree | 2 | |
| Rated Impulse With Stand Voltage (Uimp) | 2. 5kV(4kV@ 12/24/48VAC) | |
| Degreeofprotection (IEC 60529) | IP20 | |
| Operating Temperature | IP40 | |
| Storage Temperature | -5℃~+60℃(1) | |
| Tropicalization (IEC 60068-1) | -40℃~+70℃ | |
| ELSV Compliance (Extra Low Safety Voltage) for 12/24/48VAC Versions | Treatment 2(relative humidity 95% at 55℃) | |
| The Product Control Conforms To The SELV (safety extra low voltage) Requirements | ||
| (1) In the case of contactor mounting in a enclosure for whICh the interior temperature is in range between 50℃and60℃,it is necessary to use a spacer,between each contactor. | ||

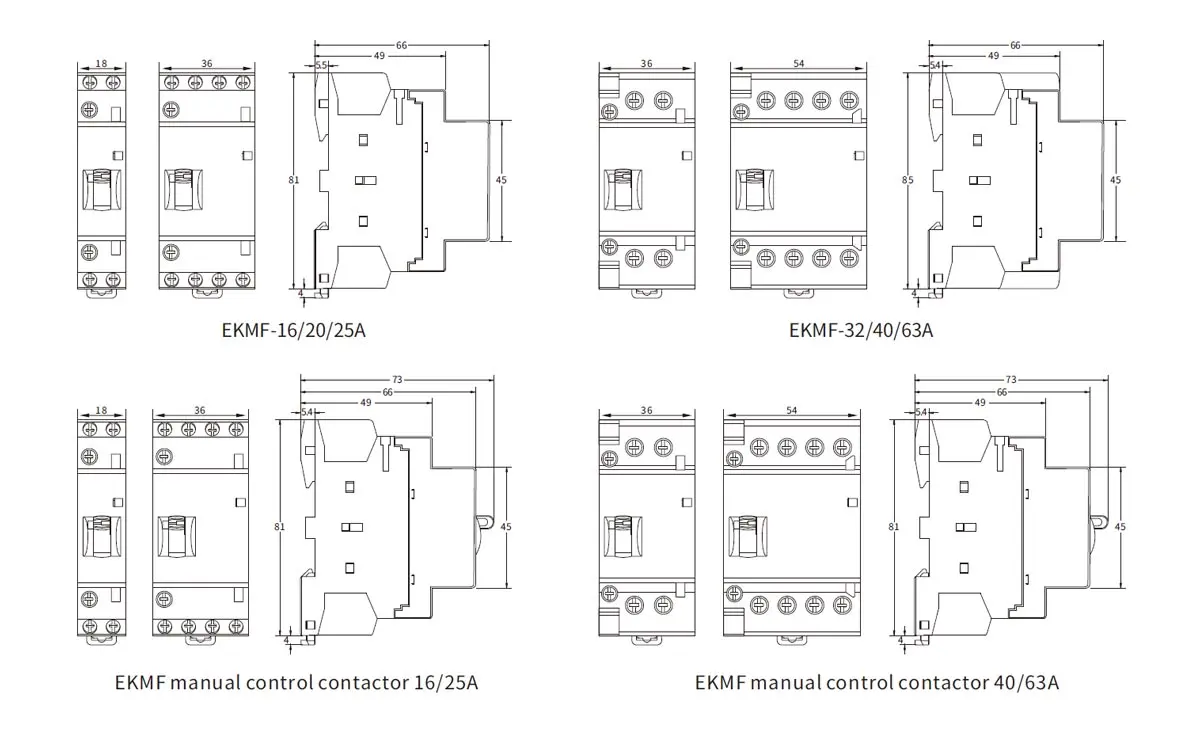

Dimensions
Dimensions
